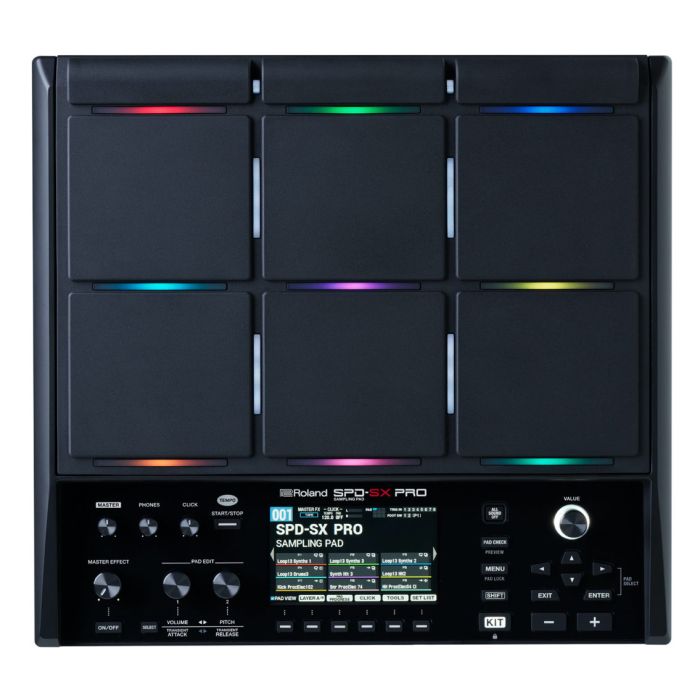

Roland SPD-SX PRO Sampling Pad

Harnessing the advanced sample pad technology of its predecessors, the SPD-SX PRO boasts an array of requested professional enhancements and is built for life on the road. Illuminate dark stages with a large color display and customizable multi-color trigger lights. Expand your performance setup with more audio outputs, additional trigger inputs, and hi-hat and FX expression pedal control. And go further with a massive 32 GB memory, 48 kHz audio playback, increased pad sensitivity without crosstalk, and a dedicated SPD-SX PRO App for easier kit editing.

Features

• Nine pads with Roland’s advanced trigger technology, including six large pads and three top-row shoulder pads
• High-visibility, horizontal and vertical LEDs with multi-color customization
• Increased shoulder pad sensitivity and improved crosstalk performance
• 4.3-inch color display for easy navigation and viewing during performance
• Import 48/44.1 kHz (16-/24-/32-bit) WAV/AIFF files and MP3s (32–320 kbps) with automatic conversion to 48 kHz/16-bit upon loading
• Stereo main output, four direct mono outputs, balanced for easy mixing on stage
• Connectivity for up to eight external individual triggers/pads (four stereo triggers or eight mono triggers with Y-cables)
• Dedicated SPD-SX PRO App for Windows/Mac for easy importing, managing samples, and deep kit editing
• 32 GB of internal storage for samples, backing tracks, and click tracks
• Input for hi-hat or footswitch expression control
• Connect hi-hats, kick, and snare for a ‘mini drum kit’ setup
• Up to 200 kit patches (43 erasable preset kits and 157 user kits)
• Over 1550 pre-loaded, high-quality samples and sounds
• 16-step pad sequencer function
• Onboard effects engine with up to four effects in parallel, plus side chain with output routing
• Built-in click/metronome
• Create in real time by recording performances as WAV files and assigning them to pads

Specs

• Pads: Built-in pads: 9 (with PAD LED, Vertical LED)
  * Four external trigger inputs are provided, allowing you to connect up to eight pads with Y cable.
• Maximum Polyphony: 32 voices (included click voices)
• Number of Recordable Wave Data: 20,000
  *Including preload data
• Internal storage: Size: 32 GB
  *Including preload data
• Sampling Time: Sampling from AUDIO IN : 60 minutes per sample, Resampling : 10 minutes per sample
• Data Format: 16-bit linear
• Sampling Frequency: 48 kHz
• Import Format: WAV, AIFF, MP3
• Kits: 200
• Preload wave: Factory preloaded samples: 1,550 or more
• Setlist: 32 (32 steps per SET LIST)
• Kit Effects: Layer Equalizer : each pad (Layer A/B independently), Layer Transient : each pad (Layer A/B independently), Multi-Effects (53 types) : 4 systems, Side Chain Compressor : 1 system
• System Effects: Master Effects (53 types), Master Compressor, Master Equalizer
• Number of USB Audio Record/Playback Channels: Sampling Rate (Original): 48 kHz, Sampling Rate (with Sampling rate converter): 96 kHz, 44.1 kHz, Record: 8 channels, Playback: 12 channels
• Display: Graphic color LCD 4.3 inch
• Connectors: PHONES jack : Stereo 1/4-inch phone type, MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type, DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type, AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control), TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type, FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type, HH CTRL, EXPRESSION jack x 1 : 1/4-inch TRS phone type, MIDI (IN, OUT/THRU) connectors, USB COMPUTER port : USB B (High-Speed USB, USB-AUDIO, USB-MIDI, App), USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export), DC IN jack
• Power Supply: DC 12V (AC Adaptor)
• Current Draw: 1,500 mA
• Accessories: Quick Start, Leaflet "Read Me First", Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES", AC Adaptor
