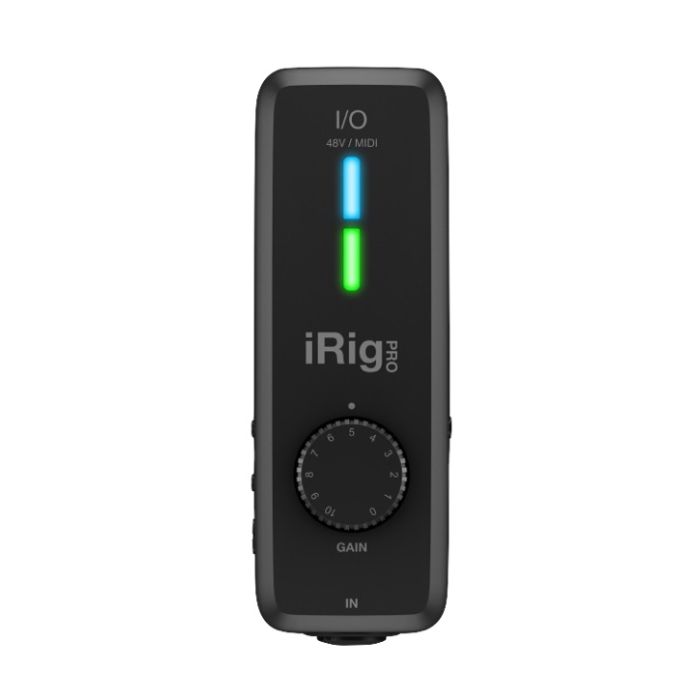

IK Multimedia iRig Pro I/O Ultra-Compact Professional Audio MIDI Interface

iRig Pro I/O is the next generation of the iRig Pro — the first mobile interface for connecting all of your studio gear to your iPhone, iPad, Mac, PC or Android device to play and record on the go.  iRig Pro I/O is a pocket-sized full-featured audio and MIDI interface that gives you 24-bit/96kHz recording studio quality sound everywhere you go with a few additional essential features for mobile recording.

Features

• High definition 24-bit/96kHz audio plus MIDI interface for iPhone, iPad, Mac, PC and Android devices
• Connects to everything, yet easily fits in your laptop bag, gig bag or pocket
• Neutrik™ combo input for guitar, microphone or other instruments with a professional quality preamp, phantom power and gain control
• iPhone 7 ready with integrated headphone output with volume control
• Powered via USB bus, two AA batteries or the optional iRig PSU 3A (PSU simultaneously charges iOS device)
• Detachable Lightning and USB cables included for connection to iPhone, iPad, Mac and PC (MFi certified)
• Comes with a Velcro strip to secure iRig Pro I/O to a mic stand
• Comes with AmpliTube 5 SE and TONEX SE for Mac/PC
• Custom ASIO driver for superior performance on Windows machines

Specs

Microphone Input

• Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Microphone Input Level: from 6 mVpp to 1.4 Vpp
• Microphone Input Impedance: 3.2 kOhms
• Gain Range: 40 dB
• Phantom Power: +48V ± 4V
• Frequency Response: 20 Hz - 20 kHz +/-1.5dB
• Input Noise: -103 dB(A), -97 dB RMS

Instrument Input

• Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
• Instrument Input Level: from 30 mVpp to 6.9 Vpp
• Instrument Input Impedance: 1 MOhms
• Gain Range: 27 dB
• Frequency Response: 20 Hz - 20 kHz +/-1.5dB
• Input Noise: -103 dB(A), -97 dB RMS

Stereo Headphone Output

• Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
• Headphone Level Control numbered thumbwheel
• Headphone Level Power 100mW into 50 Ohms

Stereo Headphone Output

• Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
• Headphone Level Power 100mW into 50 Ohms

MIDI Input/Output

• Connector: 2x2.5mm TS Jack

Other Input/Output

• DC barrel: 1x DC barrel. For power and device charging.
• Device Connector: mini-DIN

Common

• Conversion: 24-bit A/D, 24-bit D/A
• Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
• Power:
  - USB bus powered when used with a computer
  - Battery powered (2xAA included) when used with an iOS device
  - DC power supply (not included, iRig PSU 3A sold separately)*

What's Included

• iRig Pro I/O universal Audio-MIDI interface
• Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
• USB-A to Mini-DIN connection cable (60cm/23.62")
• USB-C to Mini-DIN connection cable (60cm/23.62")
• 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
• 2 x 1.5V AA Battery
• Velcro strip
