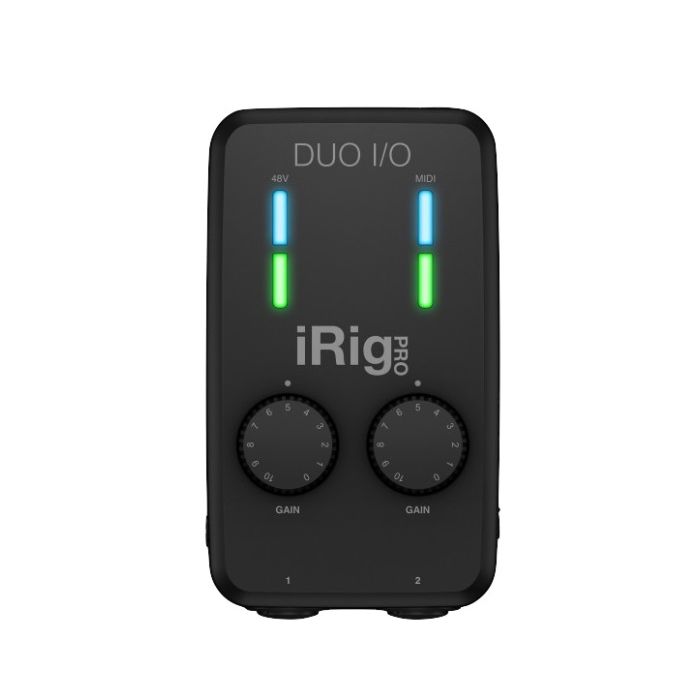

IK Multimedia iRig Pro Duo I/O Mobile 2-Channel Audio MIDI Interface
Whether you’re recording music, videos, podcasts or live-streams, sometimes you just have to get out of the studio. Whether you’re on location or on vacation, iRig Pro Duo I/O packs everything you need to capture high-quality music and audio into an ultra-portable, easily packable box. Say hello to a full-featured studio in the palm of your hand.
iRig Pro Duo I/O has 2 Neutrik™ analog inputs to record microphones, guitar/bass, keyboards, synths, and more. New Class-A mic preamps with extended gain range and +48v phantom power ensure professional sound quality and ultra-low noise. And MIDI IN/OUT jacks with breakout cables turn iRig Pro Duo I/O into a full-fledged MIDI interface as well.
iRig Pro Duo I/O runs off 2 included AA batteries, USB bus power or an optional external PSU, meaning you’re never tethered to an outlet. Let your creativity take you places you never imagined, with flawless audio quality anywhere you need it.
Features
- 2 XLR / ¼” combo guitar, mic & line inputs
- Class-A preamps with improved gain range and phantom power
- 2 balanced 1/4” outputs
- Headphone out with direct monitoring
- MIDI 2.5mm IN/OUT with breakout cables
- Improved ergonomic controls for maximum precision
- Runs off 2 AA batteries (included), bus power or optional PSU
- Rubberized finish and textured controls for reliable field use
- Includes Lightning, USB-C and USB-A cables
- Comes with AmpliTube 5 SE and TONEX SE for Mac/PC
- Designed and made in Italy
Specs
Microphone Input
- Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: 3,2 kOhms
- Gain Range: 50 dB
- Phantom Power: +48V ± 4V
- Frequency Response: 20 Hz to 20 kHz (+-1.5dB)
- Input Noise: -103 dB(A), -97 dB RMS
Instrument Input
- Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response:
• from 2 Hz to 21 kHz (-3dB) Gain @ min
• from 5 Hz to 21 kHz (-3dB) Gain @ max - Input Noise:
• -104 dB(A) Gain @ min
• -102 dB(A) Gain @ max
Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (-3dB)
- Output Dynamic Range: 106 dB(A)
- Output Impedance: 150 Ohms balanced
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz and 48 kHz
- Power: USB bus power, battery power (2xAA - included), or DC power supply (9VDC, from 500mA up, positive outside - not included)
- Metering: Multicolor LED)
- Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
- Weight: 197.2g/6.96oz (batteries excluded)
- Battery Life:
• Recording - Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
• Playback - Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.
What's Included
- iRig Pro Duo universal dual channel Audio-MIDI interface
- Lightning to Mini-DIN connection cable (60cm/23.62")
- USB-C to Mini-DIN connection cable (60cm/23.62")
- USB to Mini-DIN connection cable (60cm/23.62")
- 2x 2.5mm TRS male to MIDI female adapter (10cm/3.9")
- 2 x 1.5V AA Battery
| Brand | IK Multimedia |
|---|---|
| Type | iOS and Portable Interfaces |
| A/D Resolution | 24-bit / 48 kHz |
| Number of Preamps | 2 |
| Simultaneous I/O | 2 x 2 |
| Analog Outputs | 2 |
| Midi I/O | Yes |
| Series | IK Multimedia iRig |
