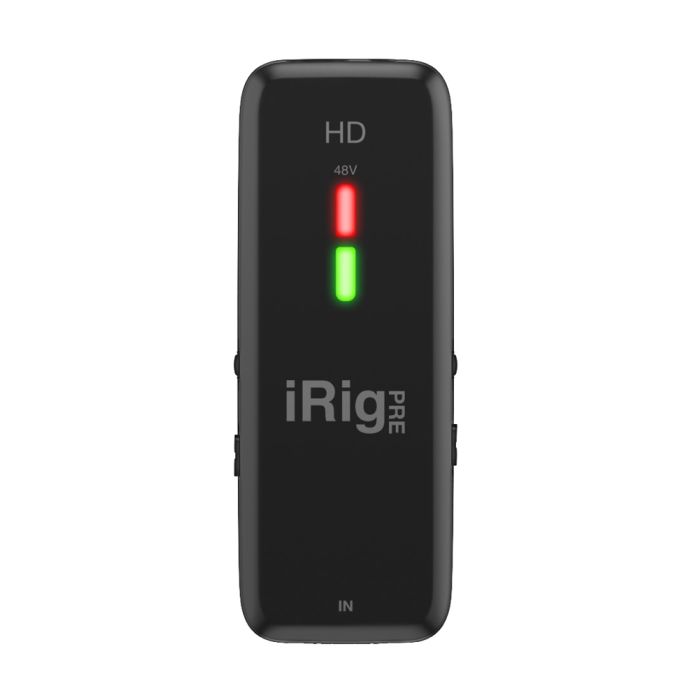

IK Multimedia iRig Pre HD High Definition Microphone Interface
Grab your favorite microphone, plug it into your iRig Pre HD and record straight to your device with true studio-quality sound anytime and anywhere. Simple as that.
Being a certified Apple MFi interface (“Made for iPhone and iPad,”) iRig Pre HD is guaranteed to work out of the box with all iOS devices using a Lightning connector including those that do not have headphone jack. The included Lighting cable allows for plug-and-play with Apple iOS devices while the USB cable connects Mac and PC computers offering the ability to record anytime and anywhere using your favorite dynamic, ribbon or condenser microphone models with phantom power (using batteries).
Delivering exceptional, best-in-category sound quality with up to 96kHz/24-bit resolution and full, flat frequency response from 20Hz to 20kHz (+/- 1.5dB), iRig Pre HD is the bridge between the world of portable devices and the one of professional microphones for recording instruments, sound for media, video, speech, interviews, documentaries and more.
Features
- MFi microphone interface certified by Apple “Made for iPhone and iPad”
- Compatible with Mac and PC
- Direct monitor switch for real-time monitoring or for playback
- +48V Phantom Power (with 2 x AA batteries)
- Class A mic preamp with onboard gain control
- High definition 24-bit converters with up to 96kHz sampling frequency
- Multicolor LED for easy gain settings
- Includes IK’s renowned, professional software and apps
- Ultra-light and compact
- Sleek and elegant design
- Comes with USB and Lightning cables, 2 x AA batteries and a velcro mounting strip
- Custom ASIO driver for superior performance on Windows machines
Specs
Microphone Input
- Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: 2 kOhms
- Gain Range: 40 dB
- Phantom Power: +48V ± 4V
- Frequency Response: 20 Hz - 20 kHz +/-1.5dB
- Input Noise: -97 dB RMS, -105 dB(A)
Stereo Headphone Output
- Connector: 1/8” TRS Jack. Tip: right / Ring: left / Shield: ground
- Headphone Level Control numbered thumbwheel
- Headphone Level Power 100mW into 50 Ohms
Other Input/Output
- Device Connector: micro-USB
Common
- Conversion: 24-bit A/D, 24-bit D/A
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
- Power:
• USB bus powered when used with a computer
• Battery powered (2xAA included) needed for +48V phantom only
What's Included
- iRig Pre HD
- Lightning to micro-USB cable
- USB-A to micro-USB cable
- USB-C to micro-USB cable
- 2 x 1.5V AA battery
- Velcro strip
| Brand | IK Multimedia |
|---|---|
| Type | iOS and Portable Interfaces |
| A/D Resolution | 24-bit / 96 kHz |
| Number of Preamps | 1 |
| Simultaneous I/O | 1 x 1 |
| Series | IK Multimedia iRig |
