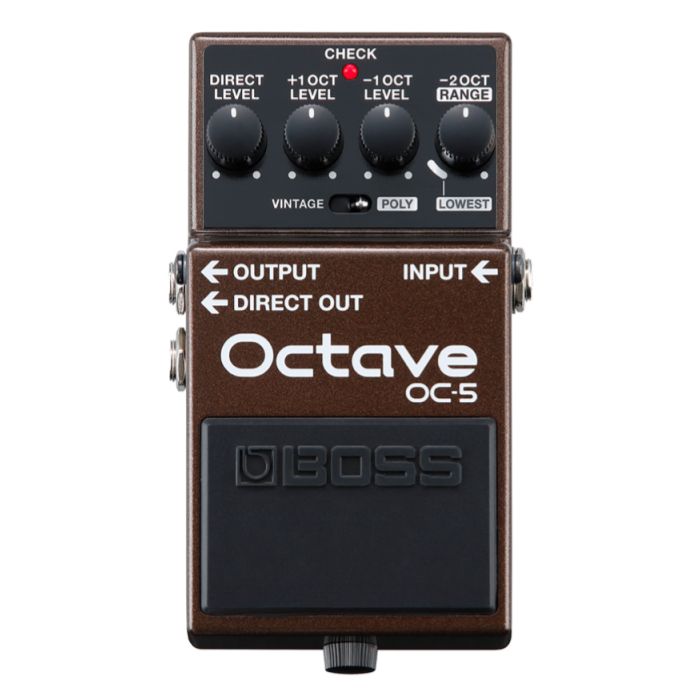

Boss OC-5 Guitar and Bass Octave Pedal

Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.

Features

• The industry-standard octave pedal, updated with enhanced features
• Newly developed tracking technology provides more accurate response and natural feel with no latency
• Vintage mode faithfully reproduces the mono sound of the original OC-2
• Poly mode for chord playing; Range knob sets the note range where the effect is applied
• Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
• New octave-up effect, available on its own or blended with octave-down effects
• Mode switch optimizes the tracking engine for guitar or bass
• Direct out for wet/dry setups
• BOSS five-year warranty

Specs

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DIRECT OUT jack: 1/4-inch phone type, DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22), AC adaptor (PSA series: sold separately)
• Current Draw: 60 mA
• Expected battery life under continuous use: Alkaline: Approx. 5 hours
  *These figures will vary depending on the actual conditions of use.
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
