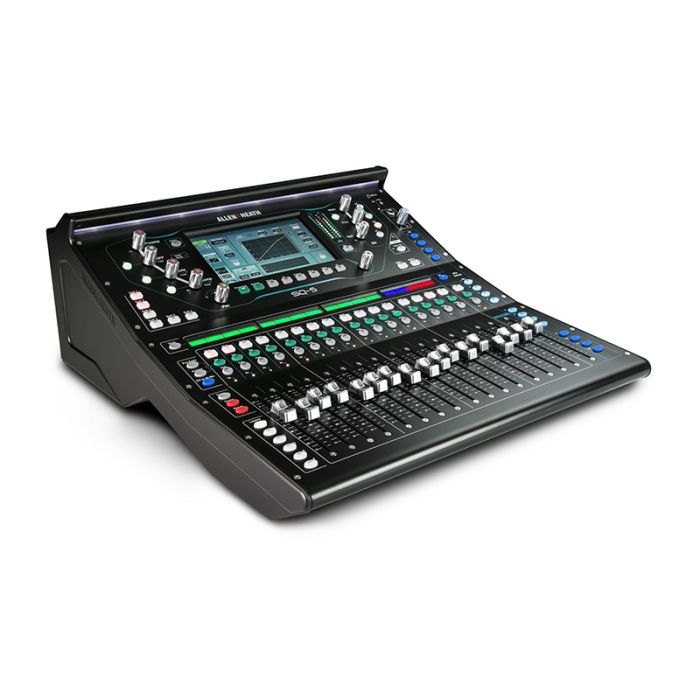

Allen & Heath SQ-5 16in / 12out 48-channel Digital Mixer
SKU
AH-SQ-5
$3,999.00
In stock
Powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine, SQ is built for professionals in demanding live sound, recording and streaming applications. Delivering class-leading high-resolution audio with an ultra-low <0.7ms latency, SQ gives you unrivalled power and audio fidelity.
Features
- 96kHz FPGA Processing
- 48 Input Channels
- DEEP Processing Ready
- 12 Stereo Mixes + LR
- 3 Stereo Matrix
- 8 Stereo FX Engines + Dedicated Returns
- 64×64 I/O Port for Audio Networking
- 32×32 USB Audio Interface
- Range of Remote Expanders
Specs
- Rack-mountable Digital Mixer for Live, Studio and Installation
- 48 Input Channels
- 16 Local Mic Inputs (XLR)
- 2 ¼” Stereo Inputs (TRS)
- 1 3.5mm Stereo Input
- 36 Total Busses
- 12 Stereo Mix (Aux or Group) + Main
- PAFL Bus
- 14 Assignable Local Outputs (12 XLR + 2 ¼” TRS)
- AES Digital Output
- Dedicated Talkback mic input (XLR)
- ¼” TRS Headphone out with dedicated control
For full specs, check out Allen & Heath's datasheet by clicking here: SQ5 Technical Datasheet
| Brand | Allen&Heath |
|---|---|
| Weight | 23.100000 |
| Series | Allen & Heath SQ |
| Channels | 48 |
| XLR Mic Inputs | 16 |
| Effects | Yes |
| Connectivity | Ehthernet, USB |
| DAW Control | Yes |
| Rackmountable | Yes |
